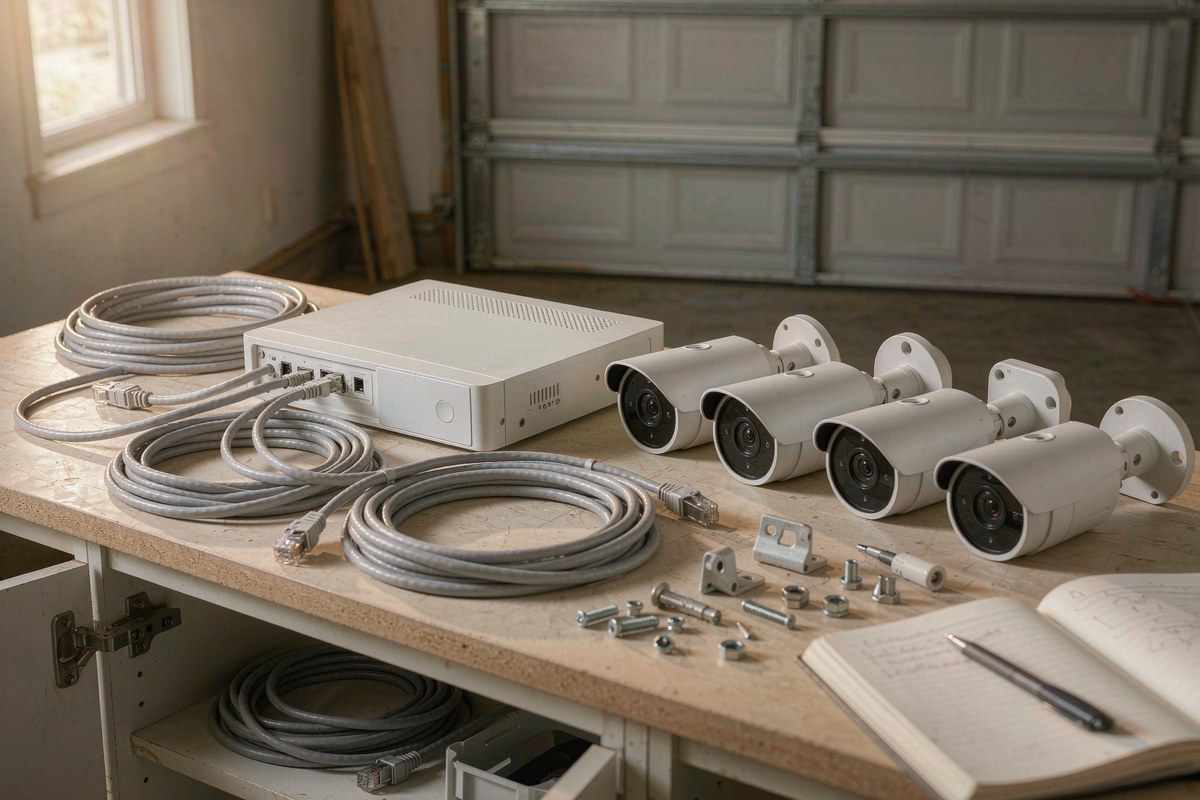

We would judge the PANOOB 16 Camera Security System by recording retention and installation effort before counting cameras. At $944.99, this PoE 5MP kit includes 16 cameras and a 4TB hard drive, which sounds like a complete answer for a large property. Our calculations show why the storage deserves as much attention as the camera count. We have the supplied listing facts, not a physical sample or recorded footage, so this is a specification-based review. We distinguish calculations from measurements throughout. Our buying angle is straightforward: can 4TB reasonably support the coverage that 16 wired cameras promise?

Quick verdict

Score: 7.4/10 — Broad coverage with a retention trade-off

We see credible value in a $944.99 package combining 16 PoE cameras, 5MP resolution, and a 4TB HDD. Dividing the package price by 16 gives about $59.06 per camera position, including the recorder and storage. That is a budgeting comparison, not the standalone value of each component.

We would buy only after confirming recording settings, hard-drive upgrade options, and cable requirements. The supplied Amazon snapshot shows 4.4 stars from 51 ratings; that is a limited sample, not evidence of years of reliable operation. Our 7.4 score reflects the specified package and its installation economics. We have not verified image quality, application behavior, or long-term reliability.

Key specs

Brand and model	PANOOB PD93A31616-5M-1
System category	Surveillance NVR kit
Included cameras	16
Listed resolution	5MP
Camera connection	Wired PoE
Included storage	4TB HDD
Supplied price	$944.99
Amazon rating snapshot	4.4/5 from 51 ratings

What we like

• Sixteen positions support a comprehensive plan. We can allocate separate views to doors, approaches, and interior access points instead of asking one wide view to cover an entire building. We would still draw those positions before purchasing.

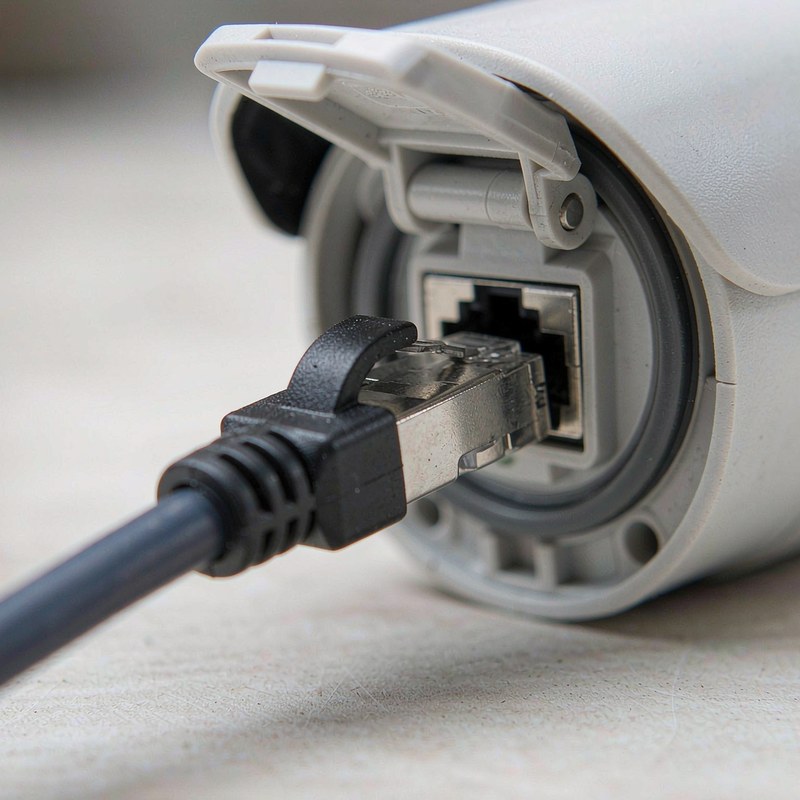

• PoE simplifies each camera run. We prefer the prospect of one Ethernet cable carrying power and data over arranging a power outlet beside every camera. We would verify port count and total power budget before assuming all connections are direct.
• A 4TB HDD establishes a storage starting point. We can calculate approximate retention without first adding a drive to the shopping list. We would confirm usable capacity, drive condition, and recording defaults during setup.
• The package price is easy to compare. At $944.99, we know the initial equipment budget before labor and accessories. We can then price cable, mounting hardware, a display, and backup power separately instead of hiding them inside a vague total.

What we do not like

• We cannot equate 4TB with weeks of continuous recording. Across 16 streams, bitrate can consume that capacity quickly, and the supplied facts do not specify the actual recording bitrate.
• We have no confirmed night-vision distance, lens field of view, frame rate, or weather-resistance rating. We would not promise face identification at a driveway or outdoor durability from the 5MP label.
• We have only 51 owner ratings in the supplied snapshot. That gives us limited support for judging drive failures, firmware maintenance, and support responsiveness.
• We would budget for substantial wiring. Even a hypothetical 50-foot average run means 800 feet across 16 cameras, before slack, service loops, or rerouting around obstacles.

How it compares

We would compare this package first with a smaller eight-camera PoE system, requesting a current quote rather than inventing a competitor price. Eight positions can halve cable-run count, although they may leave important approaches uncovered. A separate computer is another expense we would evaluate carefully: our ACEMAGIC M1A Pro Plus review provides context for a computer-based workstation, but a workstation should not be treated as an automatic replacement for this kit’s NVR and included drive.

We would also compare it with a Wi-Fi camera system built around fewer cameras. That alternative can reduce Ethernet installation work, but it does not eliminate camera power, network congestion, or storage decisions. For a nearby viewing computer, our GMKtec G10 Mini PC review is relevant to the desk-side part of the setup. We would verify software compatibility separately and avoid purchasing a second computer simply because the security package has many cameras.

Option	Price	Key specification	Who it suits
PANOOB PD93A31616-5M-1	$944.99 supplied price	16 cameras, 5MP, PoE, 4TB HDD	We would shortlist it for many fixed camera positions
Eight-camera PoE kit	Current quote required	Eight wired camera positions; storage varies	We would choose it for fewer critical views
Wi-Fi camera package	Current quote required	Wireless data links; power and storage vary	We would consider it where Ethernet routes are impractical

Hands-on: planning 16 streams around a 4TB drive

We cannot offer a hands-on recording test without a sample. We can perform a useful storage calculation using explicit assumptions. We treat the supplied 4TB as 4,000GB in decimal units and assume continuous recording with a constant average bitrate per camera. At 1Mbps, a stream generates about 10.8GB per day: one million bits per second divided by eight, multiplied by 86,400 seconds. We multiply that daily figure by 16, then divide capacity by total daily storage. These are idealized estimates, not observations from this recorder.

We get about 11.6 days at 2Mbps per camera, 5.8 days at 4Mbps, and 3.9 days at 6Mbps. We would expect less usable retention after formatting, reserved capacity, audio, and recording overhead. We would also expect actual video to vary with motion, foliage, lighting changes, codec, and quality settings. We would not lower quality simply to reach a calendar target without checking whether the resulting footage still answers the questions we need it to answer.

Assumed average per camera	Combined daily video, 16 cameras	Idealized 4TB retention
2Mbps	345.6GB	11.6 days
4Mbps	691.2GB	5.8 days
6Mbps	1,036.8GB	3.9 days

We would make the first physical installation step a bench check, with the recorder and cameras accessible. We would connect each camera, confirm a live image, record a short clip, and export it before running cable through walls. We would then check timestamps on playback and confirm that the exported file opens on another device. This sequence is our proposed acceptance test, not a claim that this model passed it. Finding a defective cable at a table is much easier than finding it after mounting 16 cameras.

We would plan framing around the actual job: seeing an approach, recognizing a visitor at a doorway, or checking a loading area. We would not describe 5MP as a guaranteed identification distance. Lens angle, mounting height, subject motion, illumination, and compression all affect useful detail. We would assess a moving person at the intended location in both daylight and darkness before accepting a final angle. A broad overview and a tighter doorway view often solve different problems, even when the cameras have the same pixel count.

We would also place the recorder somewhere ventilated, physically protected, and accessible for maintenance. We have no verified fan-noise or power-consumption measurements for this kit. If we add backup power, we need a suitably rated AC UPS with enough capacity for the recorder and all powered cameras. Our Anker 737 Power Bank review helps distinguish portable device charging from the requirements of a complete surveillance installation; we would not assume a USB power bank can power this NVR.

We would finish with account security, supported updates, and recovery procedures. We would use unique credentials, install available manufacturer updates, and confirm local recording before enabling any optional remote access. We would ask how the system behaves after an outage, whether scheduled recording resumes, and how older clips are overwritten. We would record those answers alongside the actual bitrate settings. We can compare related equipment through our reviews hub, but we would still require model-specific confirmation for camera interoperability, drive limits, and remote-viewing features.

Who should buy it

Buy it if we need close to 16 wired camera positions, have viable cable routes, and accept that 4TB may mean days rather than weeks of continuous video. We would put this kit on a shortlist for a substantial home or small commercial property where installation can be planned carefully. We would want a seller response about recording settings and drive expansion before treating the $944.99 package as complete. We would also establish who will check recordings and maintain the system after installation.

Skip it if we only need two entrances covered, cannot run Ethernet, or require a verified 30-day recording history without changing storage. For perspective, at the hypothetical 4Mbps setting, 16 cameras generate roughly 20.7TB over 30 days before overhead. That is a planning estimate, not a claim that the recorder supports a drive of that size. We would also pause if exact night performance, weather protection, or third-party compatibility is essential and the seller cannot document it.

FAQ

How long will the PANOOB system record on its 4TB HDD?

We estimate about 5.8 days at a hypothetical continuous average of 4Mbps across each of 16 cameras, before overhead. We need actual recording settings and usable drive capacity to determine real retention.

Does PoE mean we do not need power at each camera?

We generally use PoE to carry power and data over one compatible Ethernet connection. We would verify this kit’s port arrangement and power budget before buying switches or assuming every camera connects directly to the recorder.

Can we identify faces at night with these 5MP cameras?

We cannot establish that from resolution alone. We would need footage at the intended distance, lens information, lighting conditions, and confirmed night-mode specifications before promising recognition.

Is the 4.4-star Amazon rating based on many owners?

We have a supplied count of 51 ratings, which is a limited owner sample. We would not convert that figure into a claim about long-term reliability or confuse ratings with 51 written reviews.

Where to buy

Update log

October 22, 2026 — Initial specification-based assessment with calculated storage scenarios; physical testing has not been performed.
